Description
Introduction:
SCHOOLTECH interactive flat panel MS Series is a conference digital touch board with a 4K camera is an advanced communication tool designed for video conferencing and collaboration. It combines an interactive flat panel display with a high-definition camera, allowing people to hold meetings and work collaboratively in real-time, no matter where they are located. With its 4K resolution camera, this interactive flat panel can capture clear and high-quality images, ensuring all meeting participants are seen and heard clearly. Additionally, it can be used with various conference software, including Zoom, Skype, and Google Meet, providing users with numerous communication options. This interactive flat panel is a valuable asset for businesses, schools, and other organizations that rely heavily on remote work and distance learning. It promotes productivity, collaboration, and effective communication, making it easier to complete tasks, share ideas, and work effectively as a team. Overall, it is a powerful tool that allows organizations to work together seamlessly, regardless of their physical location.

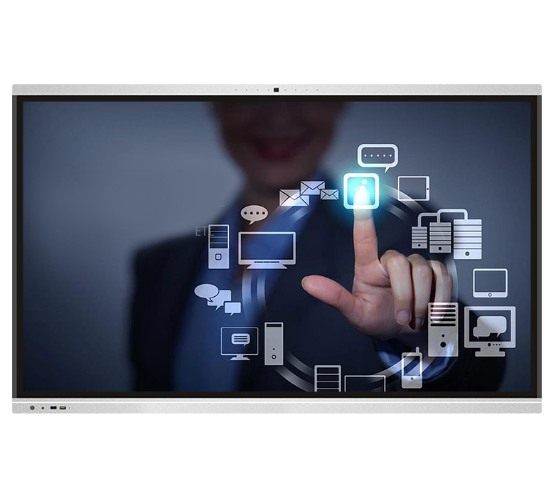

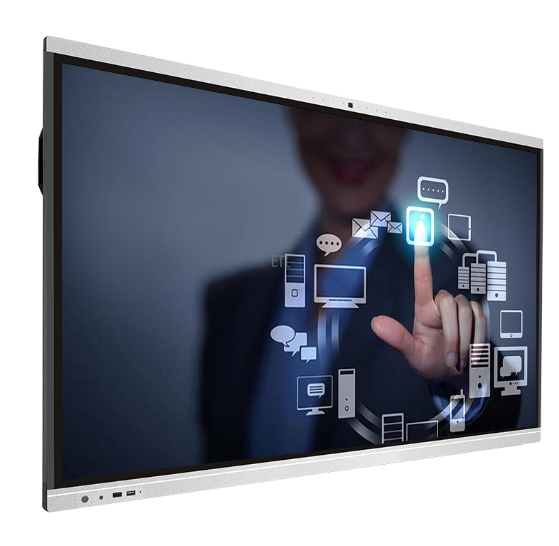

SCHOOLTECH Interactive Flat Panel MS series
are unique featured of
1) Built-in 4K camera with 8-array microphone;
2) Classical & Slim-bezel structure design;
3) One-touch for Eco/Power-on/Power-off design.
SCHOOLTECH IFPs also support multiple options.
1. OEM brand, booting, packing
2. ODM /SKD/CKD
3. Sizes available: 55″ 65″ 75: 86″ 98″
4. Touch technology: IR or capacitive
5. Manufacturing process： Air Bonding, Zero Bonding, Optical Bonding
8. Android system: Android 9.0/11.0/12.0/13.0 with RAM 2G/4G/8G/16G; and ROM 32G/64G/128G/256G
7. Windows system: OPS with CPU Intel I3/I5/I7,memory 4G/8G/16G/32G, and ROM 128G/256G/512G/1T
8. Mobile Stand
SCHOOLTECH Interactive flat panel MS series is an interactive touch board with a 4K camera and an 8-array microphone,
which would have the following key features:
1. 4K Ultra HD Display – An interactive flat panel with a 4K Ultra HD display would offer crystal-clear image quality and vivid colors, providing an excellent viewing experience for presentations, videos, and other media.
2. Touchscreen Capability – The flat panel would have touchscreen capability, allowing users to interact with the display and control applications with gestures.
3. 4K Camera – The flat panel would be equipped with a 4K camera that would provide high-quality video conferencing and online communication.
4. 8-Array Microphone – The 8-array microphone would allow for clear, high-quality audio for conference calls, webinars, and other group activities.
5. Wireless Connectivity – The flat panel would have wireless connectivity options, allowing users to connect to other devices seamlessly.
6. Compatibility – The flat panel would be compatible with a range of software applications, including popular video conferencing platforms such as Zoom, Microsoft Teams, and Skype.
7. Annotation and Collaboration Tools – The flat panel would come with a suite of annotation and collaboration tools, including digital whiteboards, pens, and highlighters, which would allow users to draw, take notes, and collaborate on content in real-time.
Overall, an interactive flat panel with a 4K camera and an 8-array microphone would provide a top-of-the-line communication and collaboration tool, with high-performance hardware and software features ideal for hybrid work environments, remote learning, and online communication.
SPECIFICATIONS:
Panel Parameters
| LED Panel | LED Panel Size | 65” | 75” | 86” |
| Backlight Type | LED | |||
| Resolution | 3840(H)×2160(V) (UHD) | |||
| Color | 10 bit 1.07B | |||
| Active Size | 1428.48*803.52 mm | 1649.66*927.93 mm | 1895.04*×1065.96 mm | |
| Dot Pitch(H*W) | 0.4296*0.4296 | |||
| Brightness | 450cd/m2 | |||
| Contrast | 5000:1 (BOF brand) | |||
| Viewing angle | 178° | |||
| Display protection | Anti glare tempered glass | |||
| Backlight lifetime | 50,000 hours | |||
|
Camera NFC |
Camera | 13 Mega pixel ultra HD | ||
| Microphone | 8 array microphone available for 8-10meters | |||
| NFC Tag Reader | Support IC Card, ID Card | |||
| Electrical performance | Max Power | ≤300W | ||
| Standby Power | ≤0.5W | |||
| Voltage | 110-240V(AC) 50/60Hz | |||
System Parameters
| Operating System (Dual OS available) |
Android System | Android 11.0 (Upgraded) |
| CPU: Quad-Core A55 1.9Ghz; GPU: Mali-G52 MP2 (Upgraded) | ||
| RAM 8G; ROM 128G | ||
| Network: Gigabit Ethernet Intel LAN/ Intel Wireless (2.4 GHz/ 5 GHz / BT), IEEE 802.11ax (Wi-Fi 6) |
||
| Bluetooth 5.0 | ||
| OPS PC | Intel Core i5-12th Generation | |
| Storage: Ram: 8G; Hard drive: 256G SSD | ||
| Intel integrated HD graphics | ||
| WiFi: 802.11b/g/n | ||
| Windows: Win 10 Pro with permanent copyright |
Touch Parameters
| Touch | Touch technology | IR touch; 20 points; HyPr Touch with Advanced IR |
| Response speed | ≤ 8ms | |
| Accuracy | 1mm | |
| Operation system | 50-Windows, Mac, and Android 20-Chrome OS | |
| Operation system | Compatible | Windows 10, Windows 11, Android, Mac |
| Speakers | Power | 20W*2 |
| Languages | Support | Chinese, English, French, Vietnamese…etc |
| Software | Included | Whiteboard, Web Browser, Screen Sharing…etc |
| Ports | Input Ports |
PC HDMI 2.0*3; USB Type C*2; LAN (RJ45)*1; VGA*1; USB-A 3.0*2; USB-A 2.0*1; Touch USB-B 3.0*1; OPS slot*1; MicroSD*1; Stereo 3.5*1
|
| Output Ports | HDMI 2.1*1; LAN (RJ45)*1; SPDIF*1; Stereo 3.5*1 | |
| Working Environment | Working temperature | 0℃~40℃ |
| Storage temperature | – 20℃～60℃ | |
| Working humidity | 10%-90% non-condensing | |
| Accessories |
Power cable*1; Touch Pen*2; QC card*1; Warranty card*1; Remote Controller*1, AAA batteries*2, Cable USB 2.0 to B (5m)*1, Cable HDMI (5m)*1, Tool tray: With magnets, hanging on frame |
|
Product Dimension
| Items / Model No. |
FC-65LED-MS |
FC-75LED-MS |
FC-86LED-MS |
| Panel Size |
65” |
75” |
86” |
| Product dimension |
1490*906*85mm |
1710*1030* 85mm |
1957*1170*95mm |
|
Packing dimension |
1620*1054* 200mm |
1845*1190* 200mm |
2110*1375* 200mm |
| Weight |
~41kg/52kg |
~56 kg/67 kg |
~71 kg/82 kg |
