Description
Introduction

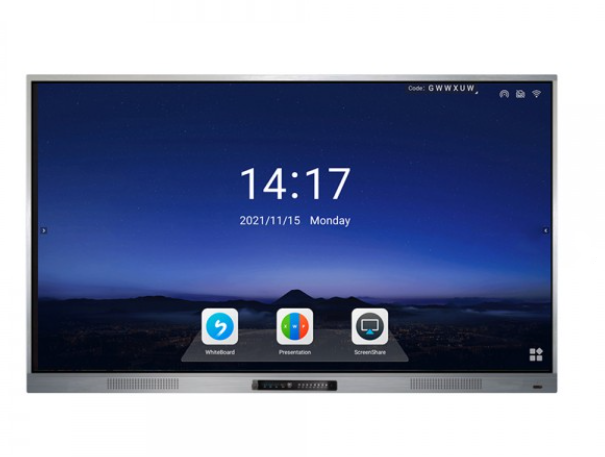

SchoolTech Interactive Flat Panel 65inch , model as FC-65LED-A , with Android 9.0/11.0/12.0/13.0,4G,32G (8G/64G; 8G/128G), is featuring 4K Ultra HD resolution and an advanced new-generation touchscreen, it delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With integrated annotation software and multiscreen share software, content creation and sharing has never been easier. What’s more, the display delivers optional slot-in OPS PC capability for more computing-intensive interactive applications.
Product Features
More Features:
SchoolTech Interactive Flat Panel is an intelligent multimedia writing panel, integrated imaging, audio, video, interaction, animation and technology in one, widely used in education, business and corporations. With a triple-sided ultra-narrow bezel design, sliding door lock protection and 4K UHD display, it’s equipped with interactive whiteboards and wireless screen casting software in a man-machine Interaction way, enabling an interactive teaching mode with multiple users and inter-connectivity, enriching classroom learning and enhancing the learning atmosphere.
* Enhanced Touchscreen Performance
Thanks to ultra-fine touch technology, this interactive display delivers an ultra-smooth, natural handwriting experience. 20-point touch allows multiple users to simultaneously write or draw on the display’s surface using styluses or their fingers, or both at the same time. Dual-tip pen support allows users to simultaneously write or draw with two different colors.
* Digital Interactive Whiteboard Solution
SchoolTech digital whiteboarding software combines kinds of writing and teaching tools, easy conversion of common office files, QR code sharing, and much more. An intuitive interface delivers the tools you need for streamlined and efficient interaction with the touchscreen. A theme UI includes a side toolbar that provides easier access to applications, settings, and productivity tools.
* Multi–screen Content Sharing Software
Screen Share enables users to share and receive content from any device platform, supports Chrome, iOS, Mac, Android, and Windows (laptop need an optional screen projector). Multiple users can simultaneously cast and share that content onto the SchoolTech display. Multi-screen casting allows up to four client screens to be shown on the SchoolTech display at once.
* Enhanced Viewing Comfort
This display is with anti-glare glass material to reduce eye fatigue and strain, also helps to deliver more comfortable long-term viewing.
SPECIFICATION
- Panel Parameters
LED Panel Size 65” Backlight Type LED (DLED) Resolution(H×V) 3840×2160 (UHD) Color 10 bit 1.07B Brightness 350cd/m2 Contrast 4000:1 (according to panel brand) Viewing angle 178° Display protection 4 mm tempered explosion-proof glass Backlight lifetime 50000 hours Speakers 15W*2 / 8Ω System Parameters
Operating System Android System Android 9.0/11.0/12.0/13.0 CPU (Processor) Quad Core 1.9GHz Storage RAM 4G; ROM 32G, RAM 8G; ROM 64G, RAM 8G; ROM 128G Network LAN/ WiFi Windows System (OPS) CPU I5 (i3/ i7 optional) Storage Memory: 4G (8G/16G optional) ; Hard Disk: 128G SSD (256G/512G/1TB optional) Network LAN/ WiFi OS Pre-install Windows 10 Pro Touch Parameters
Touch technology IR touch; 20 points; HIB Free drive Response speed ≤ 8ms Operation system Support Windows7/10, Android, Mac OS, Linux Working temperature 0℃~60℃ Operating Voltage DC5V Power consumption ≥0.5W Electrical Performance
Max Power ≤250W
≤300W
≤400W
Standby power ≤0.5W Voltage 110-240V(AC) 50/60Hz Connection Parameters and Accessories
Input ports VGA*1,AUDIO*1,HDMI*3(front*1),LAN(RJ45)*1,AV(mini)*1,YPbPr(mini)*1 ,RF*1,DP*1 Output Ports COAX*1,Earphone*1 Other Ports USB2.0*2, USB3.0*3 (front*3）,RS232*1,Touch USB*2(front*1),OPS Slots*1 Function buttons 7 buttons in front bottom frame: Power, Source,Volume+/-,Home, PC, Eco Accessories Power cable*1;Remote Control*1; Touch Pen*1; Instruction manual*1 ; Warranty card*1; Wall brackets*1 set Product Dimension
Items / Model No. FC-65LED-A
Panel Size 65”
Product dimension 1490*906*95mm
Packing dimension
1620*1054*200mm
Wall mount VESA 500*400mm
Weight 41kg/52kg
