Description
Introduction

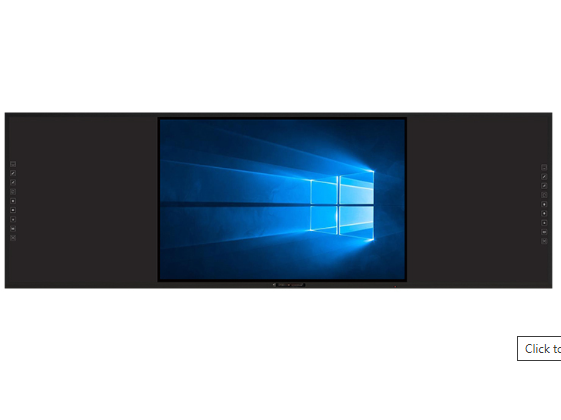

SchoolTech LED Recordable Smart Blackboard is new concept designed for smart classroom solution.
The smart blackboard integrates traditional blackboard, interactive board and led touch flat panel to create a new solution.
It enables the traditional blackboard writing content to be e-content and saved easily and conveniently.
With design of seamless writing and big flat surface, it enables multi-user to operate with multiple working modes simultaneously.

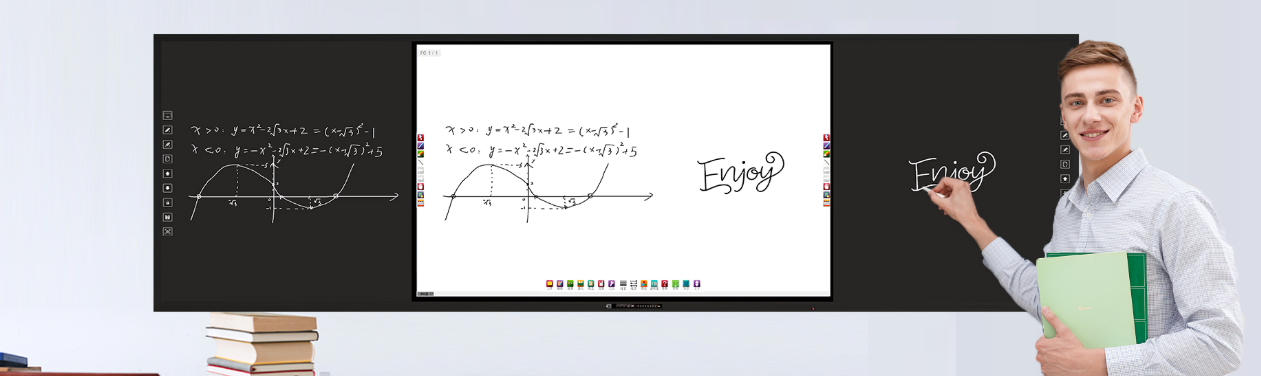

Users can write by finger, pen, chalk at the same time.
Why it’s designed?
Before we know the LED recordable smart blackboard, please read below information about the development of multimedia classroom solution, then you will know the how the LED recordable smart blackboard appears and why the classrooms need it.
In the past, there 4 generation reforms for multimedia digital classroom:
1. The 1st Generation is traditional digital classroom, installed with Projection Screen ,projector , desktop computer, blackboard or white board , podium and speakers. The solution is not interactive because of none touchable screen, all displaying and operation depend on controller, PC mouse and keyboard.
2. The 2nd Gen is traditional smart classroom, installed with interactive whiteboard , projector , computer or multimedia all-in-one PC, blackboard or white board. The solution is interactive, multi touch, modern and smart. The solution occupied the education market for more than 15years, acceptable and popular, but nowadays it has been already replaced by new generation product (LED interactive panel displays), because the system needs at least 4 products installed separately and it’s with none HD color viewing experience.
3. The 3rd Gen solution is LED interactive flat panel with blackboard or white board. The 3rd smart board solution is all in one, no need projector and computer external connected, easier to install and use. But the system still need 2 types of products to be purchased and installed separately.
4. The 4th Gen solution is Nano smart blackboard, which is all-in-one designed, no need separately to buy any writing board. The entire surface is much bigger and seamless for convenient chalk writing. But the smart blackboard can not record and save the writing notes on the blackboard, the notes are erased after writing.
5. The 5th Gen solution is SchoolTech LED Recordable Smart Blackboard, which has 4 versions since V1.0 launched in 2018. The V3.0 and V4.0 are popular and valuable. It’s newly designed with really all-in-one. It solves all the pain points of above 4 solutions and exceeds the above 4 reforms.
The LED Recordable Smart Blackboard has all functions of Interactive Smart Board, Projection, School Chalkboard, LED Interactive Touch Displays, Nano blackboard, Speakers, Visualizer, Controller, Pen Tray, etc..
Besides above functions included, it has more unique designs:
1) The LED Recordable Smart Blackboard can record handwriting notes as e-content in multiple working modes, and quick to save.
2) The saved e-content is easily to share to students to review , and upload to school cloud platform for parents to turtor children on learning.
3) The writing panel surface is 100% interactive as an ultra super big surface, with seamless design.
3) The left and right writing board surface as sub-screen, there are multiple optional types, eg. marker board, chalk board , blackboard, whiteboard, green board etc.. The sub-screen sizes can be customized according to main screen size.
4) The middle lcd panel as main screen can be written as board surface writing by marker or chalk, and easy to erase.
5) Available sizes : 146inch, 162inch and 185inch
SPECIFICATIONS:
Basic Info
| Item Name | LED Recordable Smart Blackboard | ||
| Panel Size |
146 inch |
162 inch |
185 inch |
| Model No. |
FC-146EB |
FC-162EB |
FC-185EB |
| Dimension(L*D*H) |
3572.8* 122.81*1044(H) mm |
3952.8* 127*1183 mm |
4504*145*1336 |
| Main Screen (H*V) |
1649.66* 927.93mm |
1872* 1053mm |
2159 *1214 mm |
| Sub-screen (L*D*H) |
933* 61.5*1044mm *2pcs |
1000* 61.5*1183mm *2pcs |
1143*61.5*1336mm *2pcs |
| Packing Size(L*H*D) |
1845*1190*200 mm*1 ctn; 1030 * 190 *1140 *1 ctn |
2110*1375*200mm*1 ctn; 1097*190*1280mm*1 ctn |
2410*350*1660mm*1 ctn; 1240*190*1433mm*1 ctn |
| Weight (N.W. /G.W.) |
82KG/ 95KG |
105KG/118KG |
130KG/152KG |
Main Screen Parameters
| LED Panel Size | 75”, 85”, 98” |
| Backlight Type | LED (DLED) |
| Resolution(H×V) | 3840×2160 (UHD) |
| Color | 10 bit 1.07B |
| Brightness | 350cd/m2 |
| Contrast | 4000:1 (according to panel brand) |
| Viewing angle | 178° |
| Display protection | Tempered explosion-proof glass 4 mm |
| Backlight lifetime | 50000 hours |
| TV (Optional) | Image format : PAL/SECAM/NTSC (Optional) ; Channel storage 200 |
| Speakers | 15W*2 / 8Ω |
Sub-Screen Parameters
| Blackboard Type | Green Board,Blackboard, Whiteboard as optional |
| Shortcuts | 9 Shortcuts for fast convenient operation:Split screen, Blue Pen, Red Pen, New Page, Last Page, Next Page, Board Lock,Memory Record,QR code |
| Writing Tool | Chalk, Marker, finger, pen or any non-transparent objects |
System Parameters
| Operating System | Android System | Android 6.0 |
| CPU (Processor) | CORTEX A53 Quad Core 1.5GHz | |
| GPU | Mali-720MP MP2 | |
| Storage | RAM 2GB ; ROM 32G; | |
| Network | LAN/ WiFi | |
| Windows System (OPS) | CPU | I5 (i3/ i7 optional) |
| Storage | Memory: 8G (4G/16G optional) ; HDD: 256G SSD (128G/512G/1TB optional) | |
| Network | LAN/ WiFi | |
| OS | Pre-install Windows 10 Pro |
Touch Parameters
| Touch technology | IR touch; 20 points; HIB Free drive |
| Touch Items | Main screen and sub-screen can work simultaneously. |
| Response speed | ≤ 8ms |
| Operation system | Support Windows7/10, Android, Mac OS, Linux |
| Working temperature | 0℃~60℃ |
| Operating Voltage | DC5V |
| Power consumption | ≥0.5W |
Electrical Performance
| Max Power | ≤300W | ≤400W | ≤450W |
| Standby power | ≤0.5W | ||
| Voltage | 110-240V(AC) 50/60Hz | ||
Connection Parameters and Accessories
| Front ports | USB2.0*3,HDMI*1,Touch USB*1 |
| Back Ports | HDMI*1,VGA*1,RS232*1,Audio*1,MIC*1,Earphone*1,USB2.0*4,RJ45 IN *1,RJ45 OUT *1,OPS Slots*1 |
| Function buttons | 8 buttons on front bezel: Power, Source,Menu,Volume+/-,Home, PC,Eco |
| Accessories | Power cable*1 pcs; Touch Pen*1 pcs; Remote Controller*1 pcs; QC card*1 pcs; Instruction manual*1 pcs ; Warranty card*1 pcs; Wall brackets*1 set |
